Quick guide: S3 data source
This article provides quick video tutorial and written guide on how to create an Amazon S3 data source in Upsolver.
Last updated
This article provides quick video tutorial and written guide on how to create an Amazon S3 data source in Upsolver.
Last updated
If you haven’t signed up for Upsolver yet, follow this guide to deploy Upsolver.
Upsolver supports ingesting all data formats from various data source types including but not limited to:
Upsolver can read events directly from your Amazon S3 bucket where the data should be partitioned by event date.
This guide is using COVID-19 data from Amazon AWS, but you can also follow along with your own dataset.
1. Download a COVID-19 test data set from here (July 1, 2020). You can subscribe to Amazon AWS COVID-19 testing data for the most up-to-date data sets, or you can use your own data set.
2. Create a S3 bucket in your own AWS account with data partitioned by date. Since the data set being used here is from July 1, 2020, put the CSV file under 2020/07/01.
1. From your Upsolver UI, click on New Data Source.
2. Select Amazon S3 as your data source type.

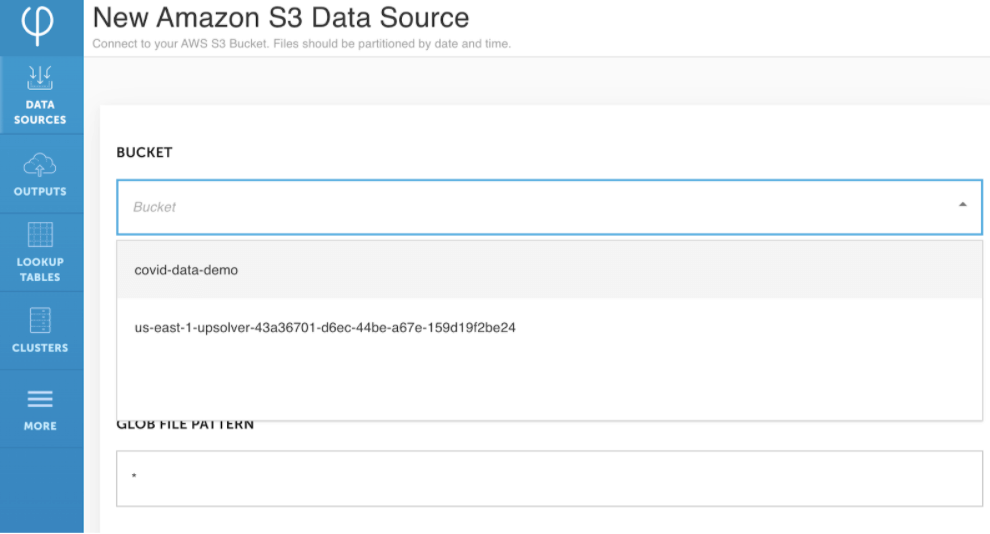

3. Since Upsolver is integrated with your S3 storage, your buckets are automatically detected. Select the bucket in which your data is located.

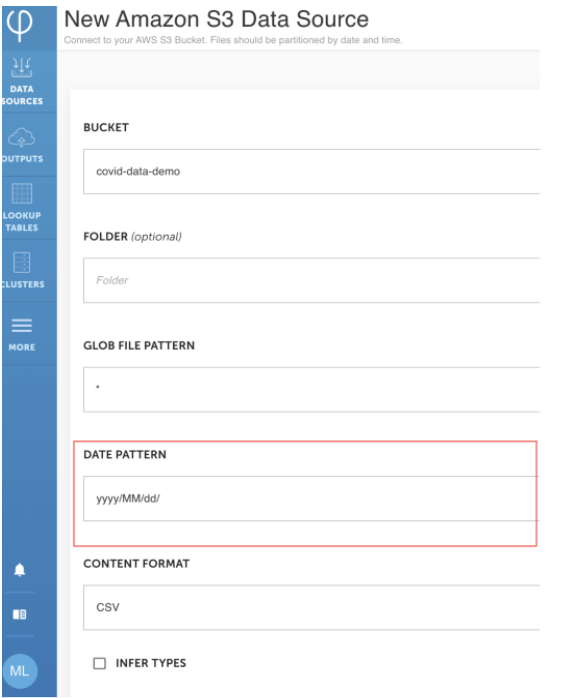

4. The Date Pattern should match how S3 bucket data is partitioned from step 2.
Example: For 2020/07/01, the Date Pattern should be yyyy/MM/dd/.

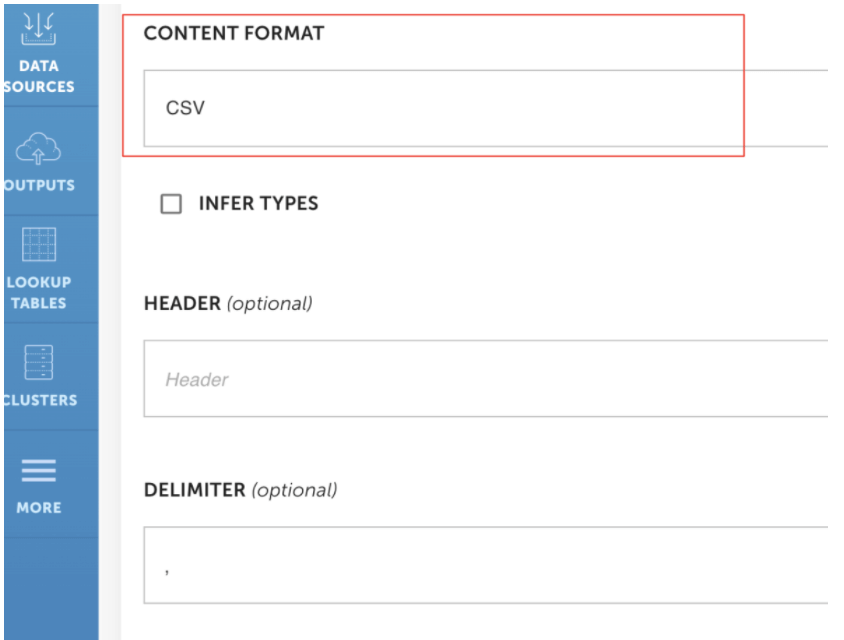

5. Choose CSV as the Content Format.
Keep in mind that Upsolver supports all file formats and that different data types provide various options to parse the data. CSV is just being used as an example here. See: Data formats
For CSV files, you should check Infer Types if you wish to auto-detect data types; otherwise, Upsolver will take in each field as a string.
You can also optionally define the headers of the columns you want to load under Header and define your own delimiter under Delimiter.

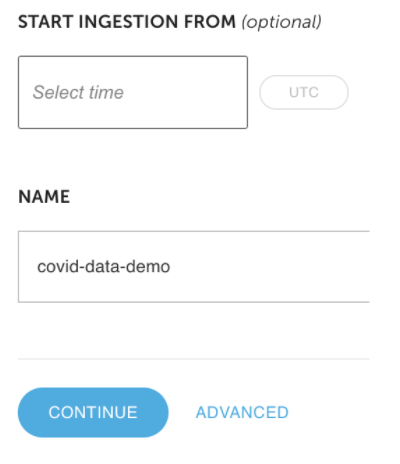

6. Click Continue.

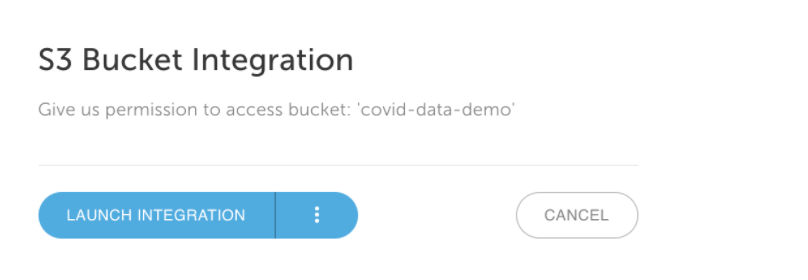

7. Click Launch Integration to integrate your S3 bucket with Upsolver; a CloudFormation page will open up in a new tab.

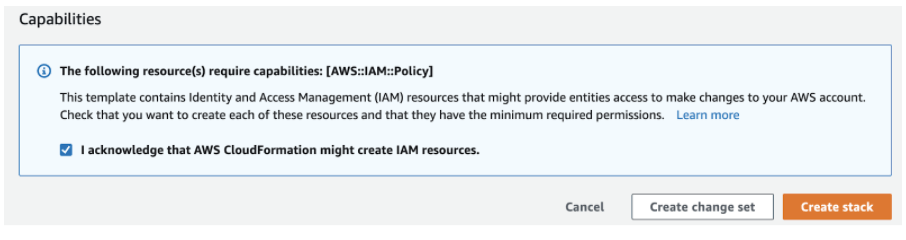

8. Scroll down the CloudFormation page and check the I acknowledge statement. Then click on Create stack.
9. Within a minute or so, the stack should be fully created, indicated by its status which should now be CREATE_COMPLETE.

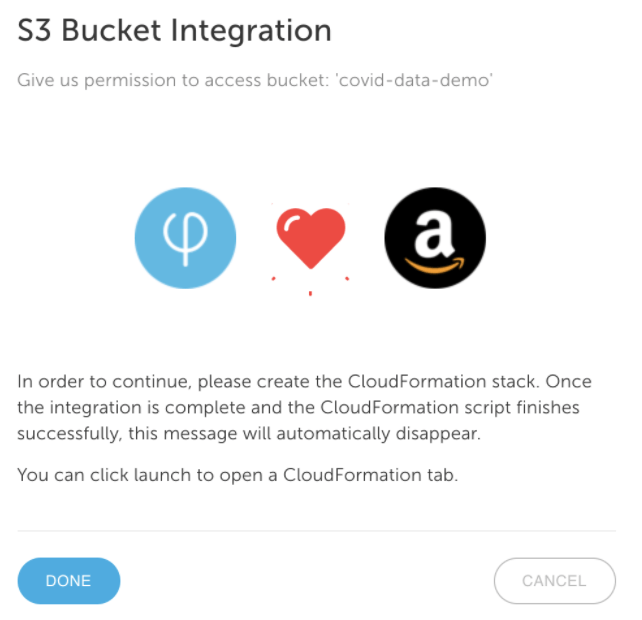

10. Go back to the Upsolver UI and click on Done.
11. You will be shown a sample of the parsed data. If everything looks OK, click Create.
Congratulations! You have successfully created an Amazon S3 data source. You can click on the Parse Errors tab to ensure everything was parsed properly.
